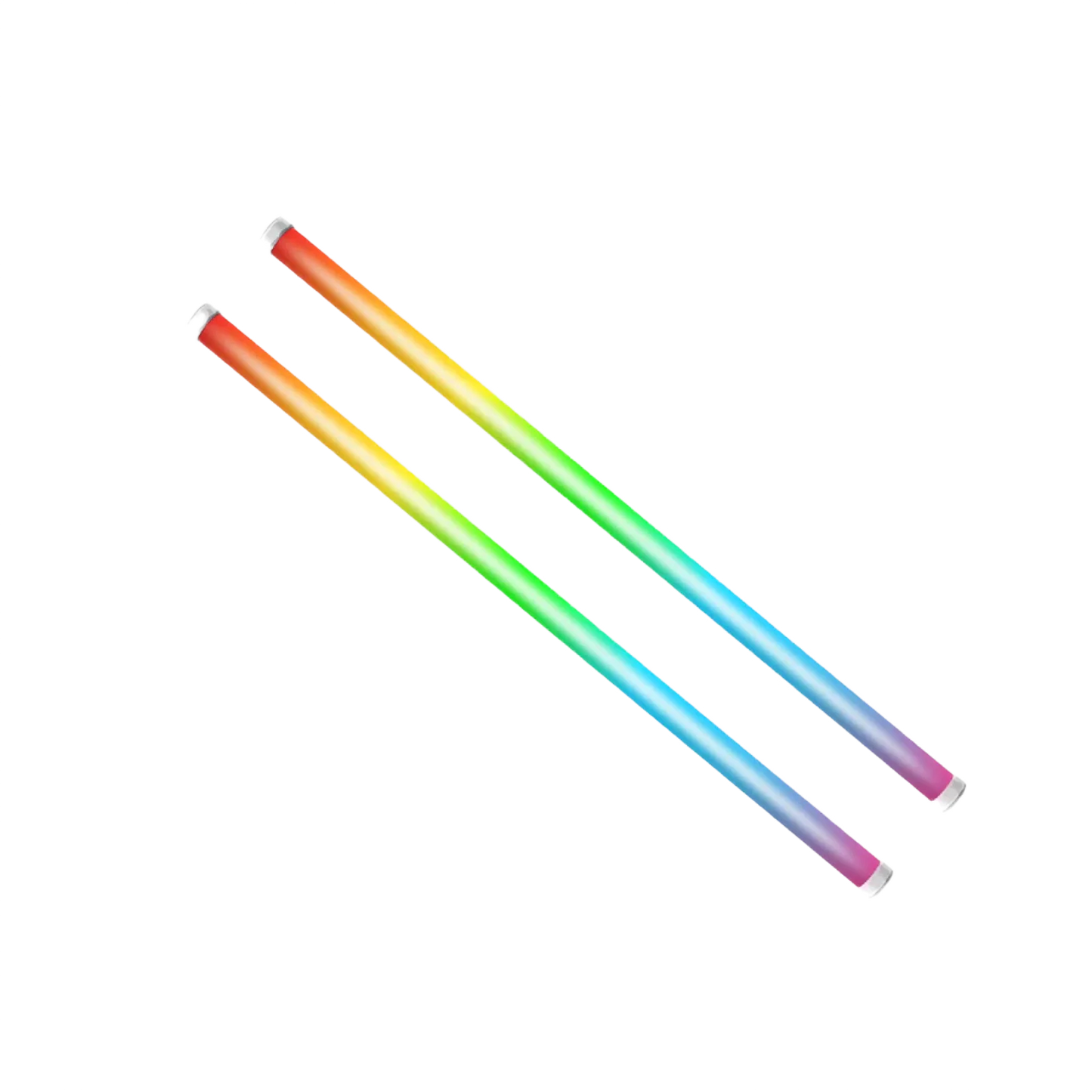

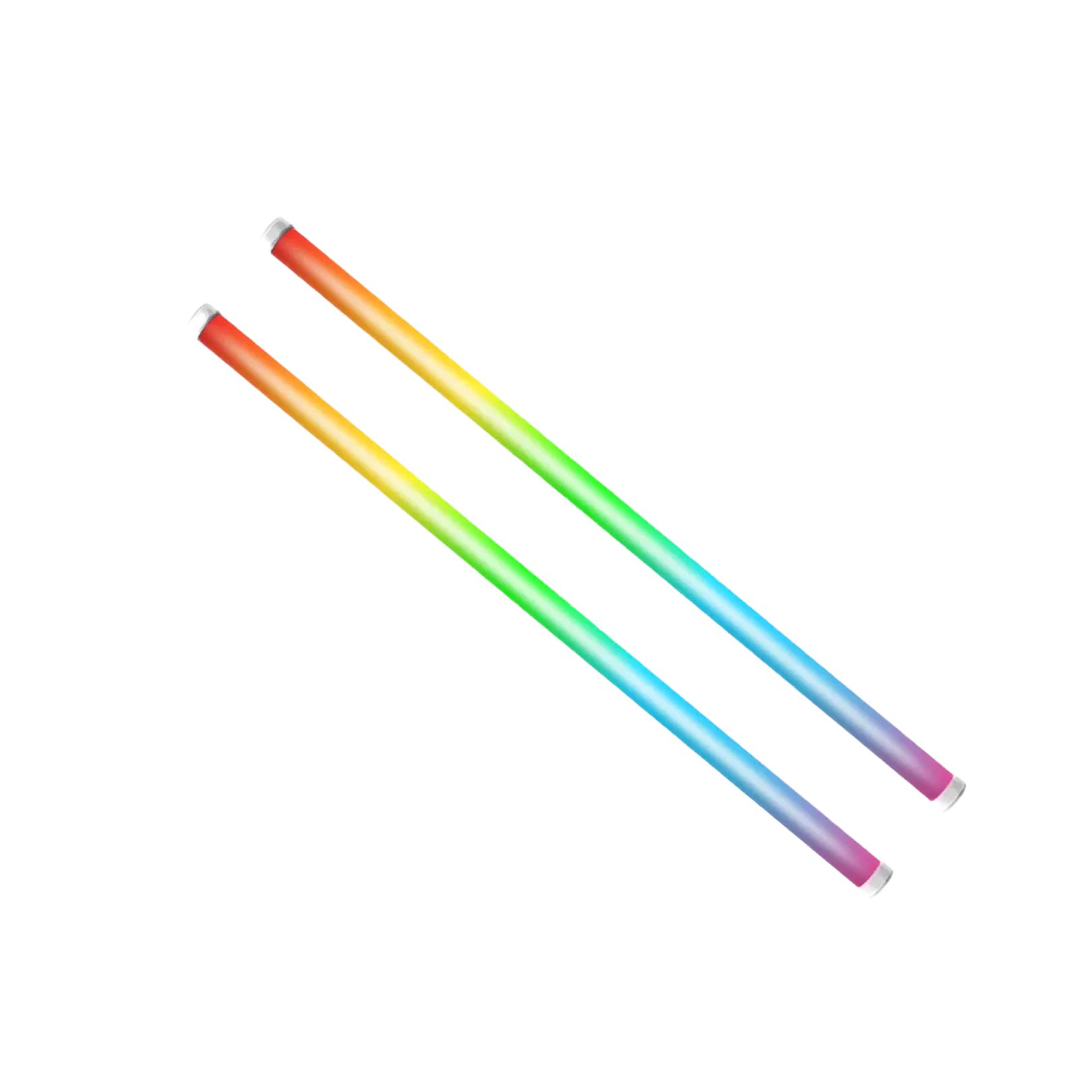

AMARAN PT4C 2 LIGHT KIT (USED)

Technical Specifications

• CCT 2,700K - 10,000K
• CRI (@5,600K) 95
• TLCI (@5,600K) 98
• CQS (@5,600K) 96
• SSI (D56) 75
• SSI (Tungsten) 85
• TM-30 RF (@5,600K) 92
• TM-30 RG (@5,600K) 100
• Max Power Output 23W
• Max Power Draw 32W
• Pixel Mapping 16 Pixels
• Lumens 1,402lm
• Beam Angle 180º
• Charging Input USB Type-C PD 32W
• Power Supply (Voltage) USB PD 5V/9V/12V/15V/20V
• Power Supply (Cable Length) 1.8m / 70.86in
• Battery Voltage 14.8V
• Battery Capacity 5200mAh, 77Wh
• Battery Runtime Approx. 170 Mins @ 100% Input
  Approx. 228 Mins @ 75% Input
  Approx. 321 Mins @ 50% Output
  Approx. 776 Mins @ 10% Output
• Charge Time Approx. 190 Mins (5V/2A)
• Operating Temperature -10ºC ~ 40ºC / 14ºF ~ 104ºF
• Control Methods On-board, Sidus Link App, DMX via USB Type-C (Sold Separately)
• Firmware Upgradeable Sidus Link
• Wireless Operating Range (Bluetooth) ≤80m / ≤262.5ft
• Screen Type TFT
• IP Rating IP20
• CoolIng Method Passive Cooling

Dimensions

• Fixture φ42 x 1,200mm / φ1.65 x 47.24in
• Magnetic T12 Bracket 54 x 46 x 42mm / 2.12 x 1.81 x 1.65in
• Power Adapter 58 x 58 x 29mm / 2.28 x 2.28 x 1.14in
• Eyebolt 36 x 20 x 40mm / 1.42 x 0.79 x 1.57in
• Mini Tripod φ35 x 177mm / φ1.38 x 6.97in
• USB-C to DMX Adapter Cable 490mm / 19.3in
• Carrying Case 1,250 x 139 x 139mm / 49.2 x 5.5 x 5.5in

  Weights

  • Fixture 1.375kg / 3.03lbs
  • Magnetic T12 Bracket 54g / 0.12lbs
  • Power Adapter 185g / 0.41lbs
  • Eyebolt 41g / 0.09lbs
  • Mini Tripod 175g / 0.38lbs
  • USB-C to DMX Adapter Cable 95g / 0.2lbs
  • Total with Case 5.608kg / 12.36lbs
