Aputure STORM XT52 Wide-angle Reflector

Key Features

• For Studio & Film/TV Production
• Output: 103,500 Lux at 9.8' w/ Reflector
• 2500-10,000K CCT
• High-Output/Tunable-White/BLAIR Chipset
• Onboard, DMX & App Control
• Art-Net, sACN & LumenRadio CRMX Control
• CRI >96 | TLCI >96 | SSI 87/86
• Advanced Liquid Cooling, IP65 Rated
• Electronic Aputure Mount

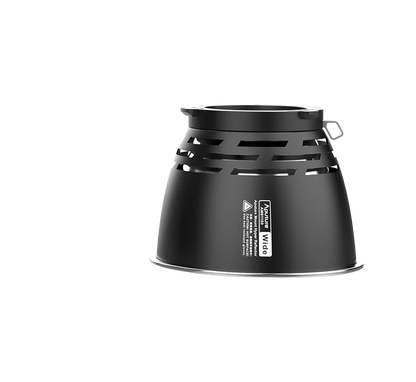

• Includes 35° Reflector & Control Box

Durable, High-Output Light

Designed for large-scale film/television productions, the STORM XT52 Point-Source Tunable-White LED Monolight from Aputure fixture offers 5200W of high-output white CCT from 2500 to 10,000K. It features exceptional accuracy, advanced connectivity, and rugged IP65 construction that withstands demanding capture environments.

Electronic Modifiers

Its electronic mount is compatible with Aputure's innovative modifiers that provide enhanced optimization and motorized control. This XT52 fixture version comes with a bare ends cable.

Expanded Mounting

The XT52's innovative electronic Aputure mount is designed for heavy-duty modifiers, including the optional CF14 or upcoming CF16 Motorized Fresnel, guaranteeing stability, durability, and optimized color accuracy while supporting motorized focus control. Take full advantage of this mount's versatility by swapping out the included 35° reflector with one of Aputure's optional 20 and 50° reflectors.

BLAIR Chipset and Color Accuracy

In addition to a 5200W output that rivals industry-standard 6000W HMIs, the XT52 light is equipped with a powerful BLAIR (blue, lime, amber, indigo, and red) chipset that delivers exceptionally accurate color reproduction across its tunable CCT range of 2500 to 10,000K. It offers a CRI and TLCI of >96 and SSI of daylight and tungsten at 86 and 87, respectively. Its advanced white-point control offers ±G 100% ASC MITC range green-magenta color correction, for seamless integration in mixed-lighting environments. The XT52 outputs up to 103,500 lux at a distance of 9.8' using its included 35° reflector.

Professional Connectivity

Designed with professionals in mind, the XT52 offers advanced connectivity options, including Sidus Link app control, LumenRadio CRMX, Art-Net and sACN via etherCON, and 16-bit DMX512 input and output. These features seamlessly integrate the fixture into existing lighting workflows, providing lighting technicians and programmers with complete control over its operation.

The XT52's head cable is extendable up to 148' for use in a cherry picker or other distant setup, allowing you to rest the controller box on the ground.

Advanced Liquid Cooling Technology

To effectively manage heat dissipation and maximize light output, the XT52 incorporates advanced liquid cooling technology. This innovative design guarantees that users can access the full potential of the fixture's light output while maintaining optimal performance.

Available Power Options

Depending on your location, the XT52 can be powered from household circuits, but please note that it requires 180V or greater to operate at full power. This XT52 fixture comes with a bare ends cable, letting users customize their plug solutions. It includes a 24.6' long head cable and offers head-cable daisy chaining at lengths up to 147.6'.

Flexible, Flicker-Free Performance

The flexible XT52 fixture supports both CIE daylight or Blackbody white light standards and uses a HyperDrive LED driver to ensure flicker-free performance at all color temperatures above 20% output.

Additional Features

The XT52's design features a stackable lamp head and a removable manual yoke, streamlining your storage options. Also featured is a modular, service-friendly sub-assembly with circuit board-level monitoring and fault error codes.

Rugged Design

The rugged XT52 is IP65 rated for weather protection, enabling you to use it in the most challenging environments.
