Sidus Link Bridge

Key Features

• Control Legacy Device via Bluetooth
• Supports 2.4G Wi-Fi and Bluetooth
• Control up to 12 Sets of Lights
• 262' Line-of-Sight Range
• 1300' Range with Sidus Mesh Network
• Supports 9 x Built-In Effects
• Supports SidusPro FX Picker FX Function
• IP65 Rating for Outdoor Use
• 18-Hour Runtime Per Charge
• USB Type-C PD Charging

Overview

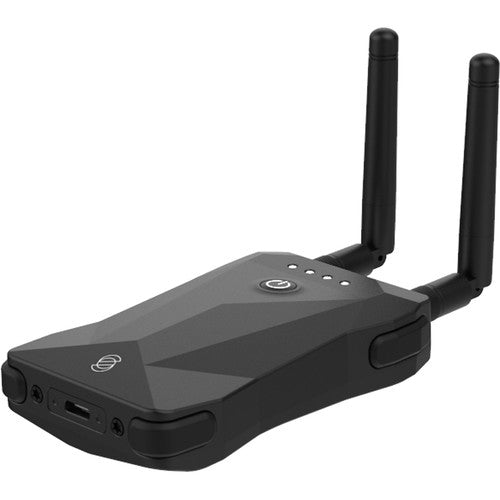

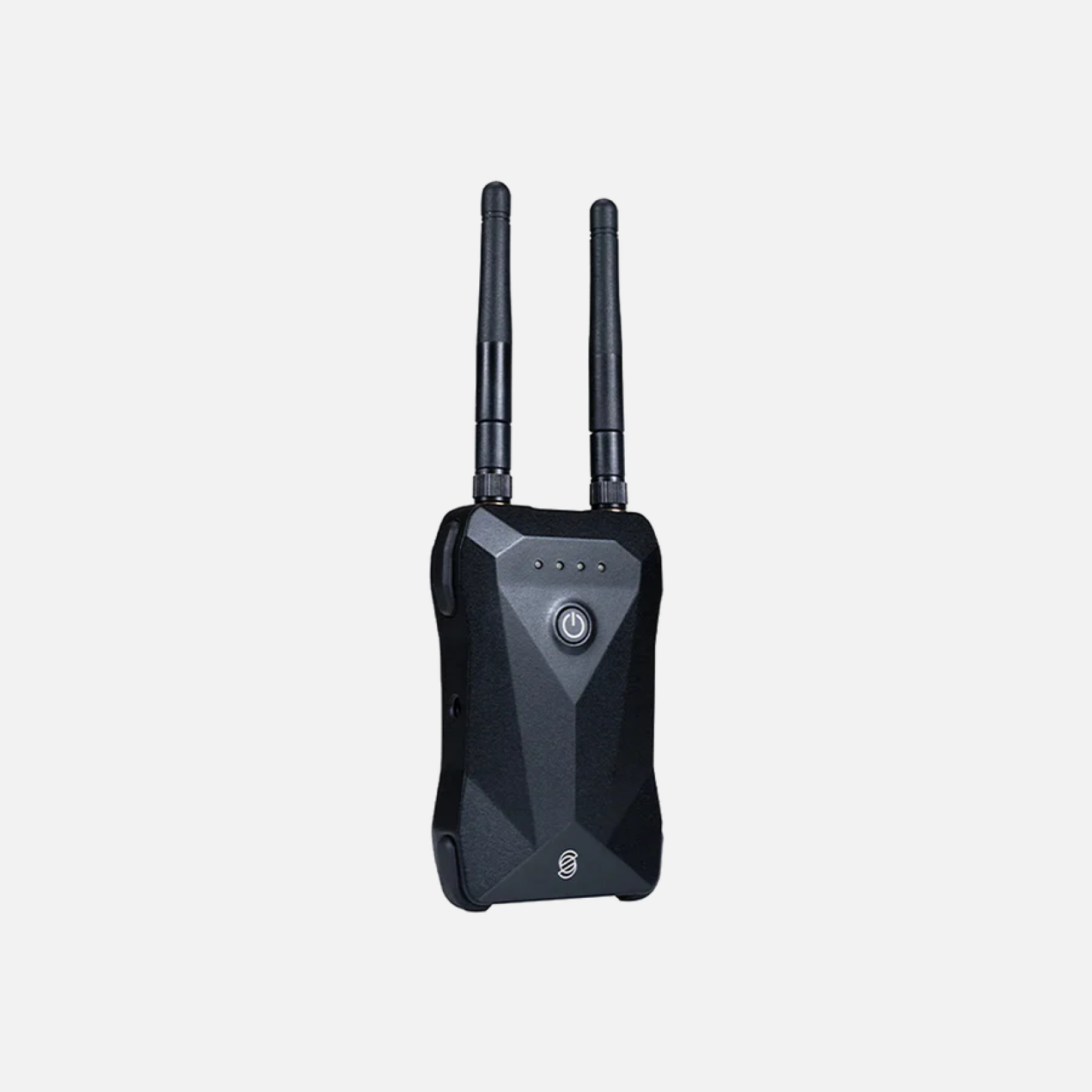

The Aputure Sidus Link Bridge enables you to control your legacy Aputure 2.4G Wi-Fi lighting fixtures, such as the HR672, Tri-8, LS C120d II, & LS C300d via your Bluetooth enabled smart device running the Sidus Link mobile app. The Link Bridge allows you to control 3 discrete channels, and four groups of lights across each channel, for a total of 12 different sets of lights. The Connect to the Sidus Link Bridge with your device via Bluetooth from up to 262' away, and the Link Bridge can control lights via Wi-Fi up to 328', allowing you to control a light that is up to 600' away from your Bluetooth device. Connecting through ae Sidus Mesh network can extend the Bluetooth range further for a 12300' range.

Not only does the Sidus Link Bridge allow you to control your legacy lighting instruments via Bluetooth, but it also expands the usefulness of the units by enabling effects mode available in the Sidus Link mobile app. Rated at IP65, the Link Bridge is suitable for use indoors and out, in pleasant and inclement weather. The integrated battery will run for up to 18 hours on a single charge, and the unit supports USB Type-C PD charging for fast recharging of the battery.

Interface

A single button with 4 LED indicators provide status information including, battery status, charging status, connection status, and working status of the unit. The LED's automatically adjust their brightness to match the ambient lighting conditions

The Sidus Link App

Connect the Sidus Link Bridge to the app, and the bridge allows you to control your lights via the app.

Multiple Lights and Groups

The bridge allows you to control lights over three channels, with four groups of lights per channel, allowing you to control up to 12 sets of lights from your Bluetooth device with one Sidus Link Bridge.

• Use the unit on interior as well as exterior shoots in the in clear weather as well as dusty or inclement weather conditions.
