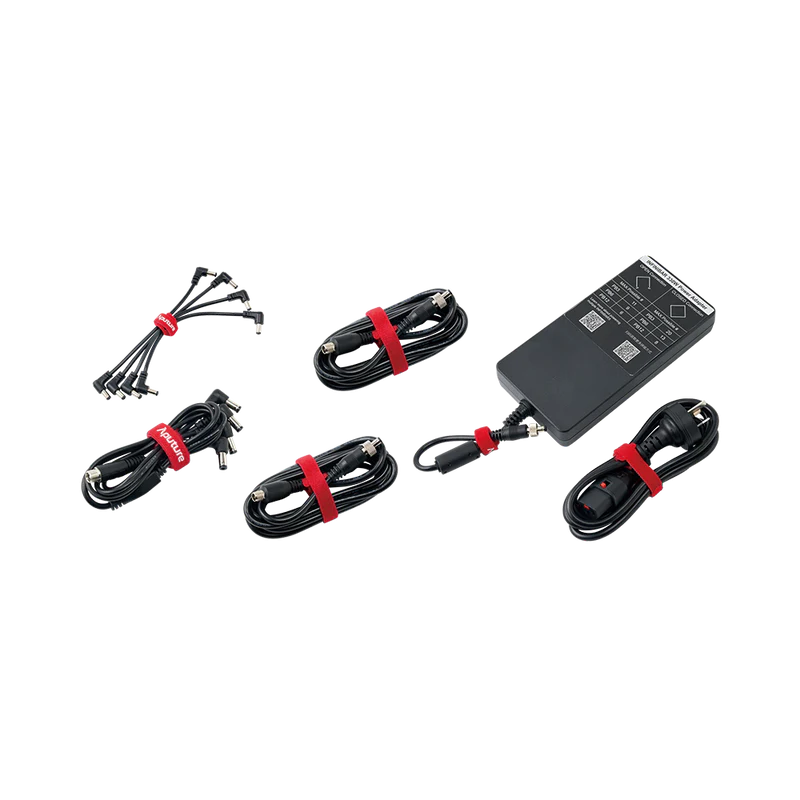

Aputure INFINIBAR 330W (24V) Power Adapter Kit and Extension Cables

Key Features

• For Powering Multiple INFINIBARS
• Two 9.8' DC Extension Cables
• 8-Way Splitter Cable
• Four 7.9" Male-to-Male DC Power Cables

Overview

The INFINIBAR Power Adapter Kit from Aputure bundles the 330W AC-to-DC power adapter along with additional DC power cables, including two 9.8' extension cables, an 8-way splitter, and four 7.9" male-to-male power cables for DC power pass-through in multi-light arrays. The kit simplifies cable management on set, allowing for cleaner working environments and faster cable deployment times.

Aputure INFINIBAR Power Adapter (24V, 330W)

Essential for managing cables in multilight arrays, the Aputure INFINIBAR Power Adapter outputs 330W of DC power and comes with a 5' AC cable to power or charge up to eight PB12 RGB LED lights in a closed circuit. The adapter's 5.5mm DC locking barrel connector is compatible with Aputure's optional power accessories.

Closed Circuit

In a closed circuit, the power adapter can power or charge up to:

• 20 INFINIBAR PB3 RGB LED light panels
• 13 INFINIBAR PB6 RGB LED light panels
• 8 INFINIBAR PB12 RGB LED light panels

Open Circuit

In an open circuit, the power adapter can power or charge up to:

• 11 INFINIBAR PB3 RGB LED light panels
• 9 INFINIBAR PB6 RGB LED light panels
• 6 INFINIBAR PB12 RGB LED light panels

Aputure INFINIBAR 8-Way Power Splitter Cable

The Aputure 8-Way Power Splitter Cable is an accessory cable for the PB3, PB6, and PB12 INFINIBAR RGB LED panel lights. It splits off from a locking 5.5mm barrel connector to eight separate cables terminating in right-angle 5.5mm DC barrel connectors. It can power or charge up to eight individual INFINIBARs when used with the 330W power adapter, available separately.
