Aputure STORM XT52 Reflector Kit

Key Features

• For Studio & Film/TV Production
• Output: 103,500 Lux at 9.8' w/ Reflector
• 2500-10,000K CCT
• High-Output/Tunable-White/BLAIR Chipset
• Onboard, DMX & App Control
• Art-Net, sACN & LumenRadio CRMX Control
• CRI >96 | TLCI >96 | SSI 87/86
• Advanced Liquid Cooling, IP65 Rated
• Electronic Aputure Mount, 35° Reflector

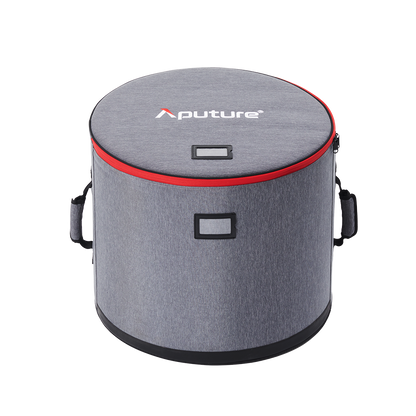

• Includes Control Box & Lamp Head Cases

Designed for large-scale film and television productions, theSTORM XT52 Point-Source Tunable-White LED MonolightfromAputureoffers 5200W of high-output white CCT from 2500 to 10,000K. This fixture features a BLAIR chipset for exceptional accuracy, advanced connectivity options, and a rugged IP65 dust and weather-resistant construction that withstands demanding capture environments. Its electronic mount is compatible with Aputure's innovative electronic modifiers that provide enhanced optimization and motorized control. This version of the XT52 fixture comes with a bare ends cable and two flight cases.

Chipset and Color Accuracy

In addition to a 5200W output that rivals industry-standard 6000W HMIs, the XT52 light is equipped with a powerful BLAIR (blue, lime, amber, indigo, and red) chipset that delivers exceptionally accurate color reproduction across its tunable CCT range of 2500 to 10,000K. It offers a CRI and TLCI of >96 and SSI of daylight and tungsten at 86 and 87, respectively. Its advanced white-point control offers ±G 100% ASC MITC range green-magenta color correction, for seamless integration in mixed-lighting environments. The XT52 outputs up to 103,500 lux at a distance of 9.8' using its included 35° reflector.

Expanded Mounting

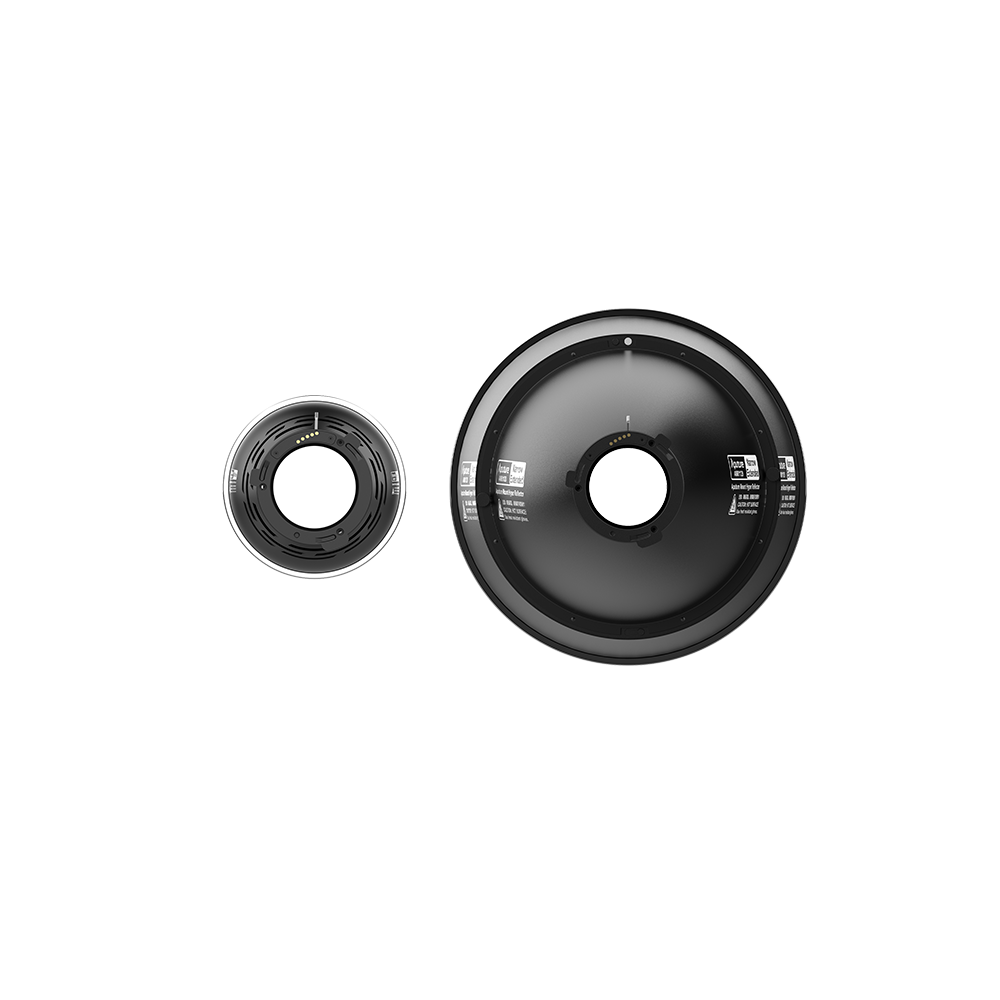

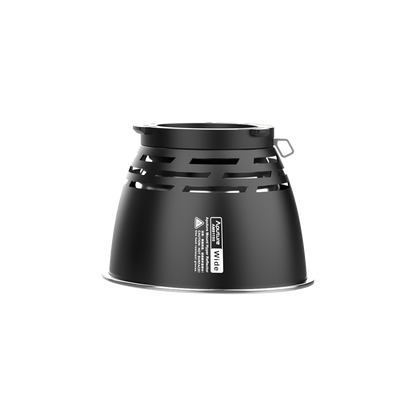

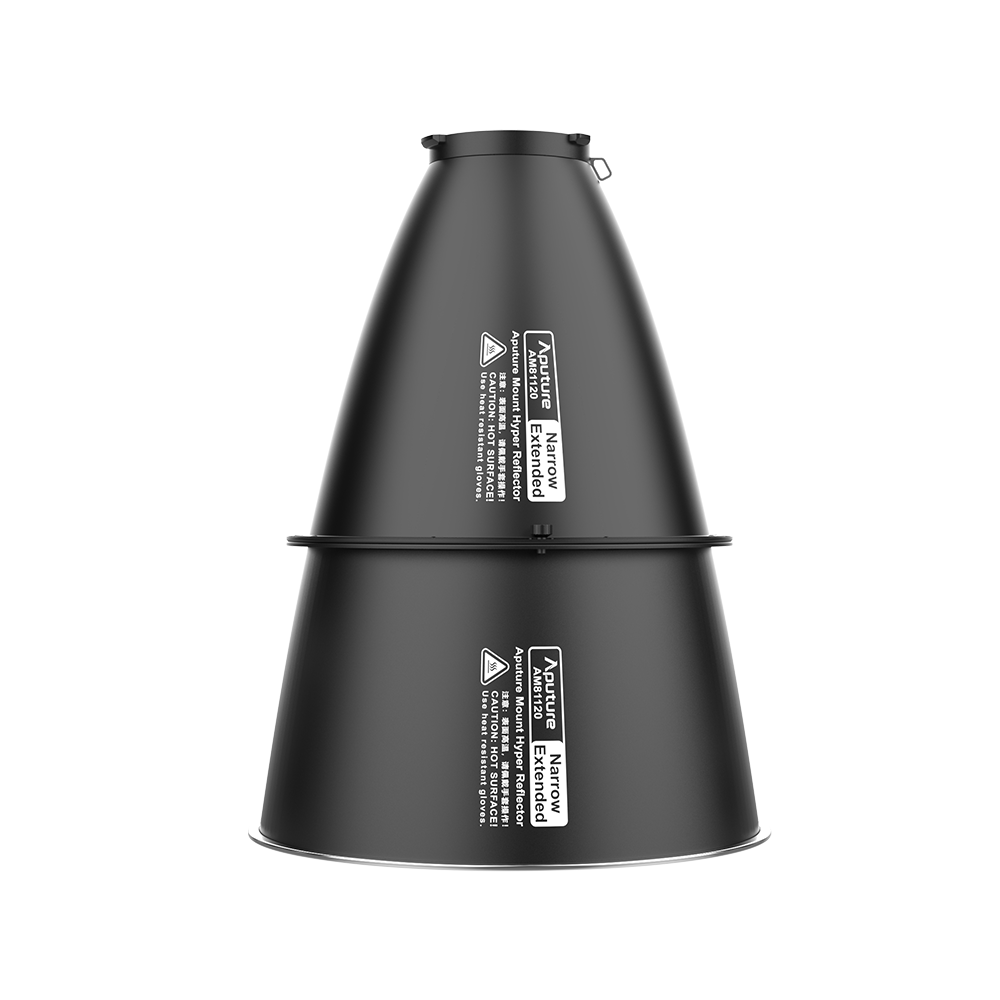

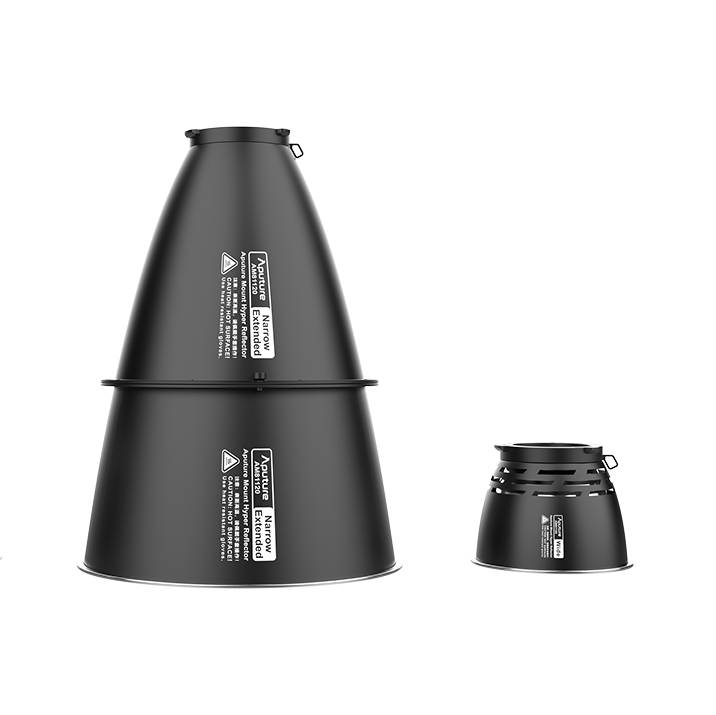

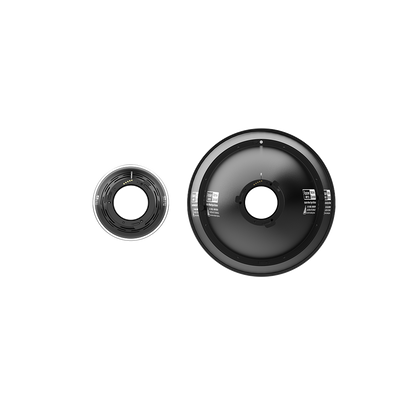

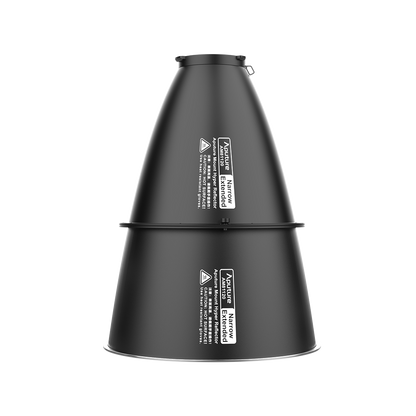

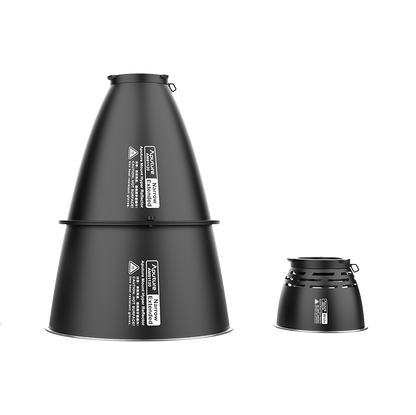

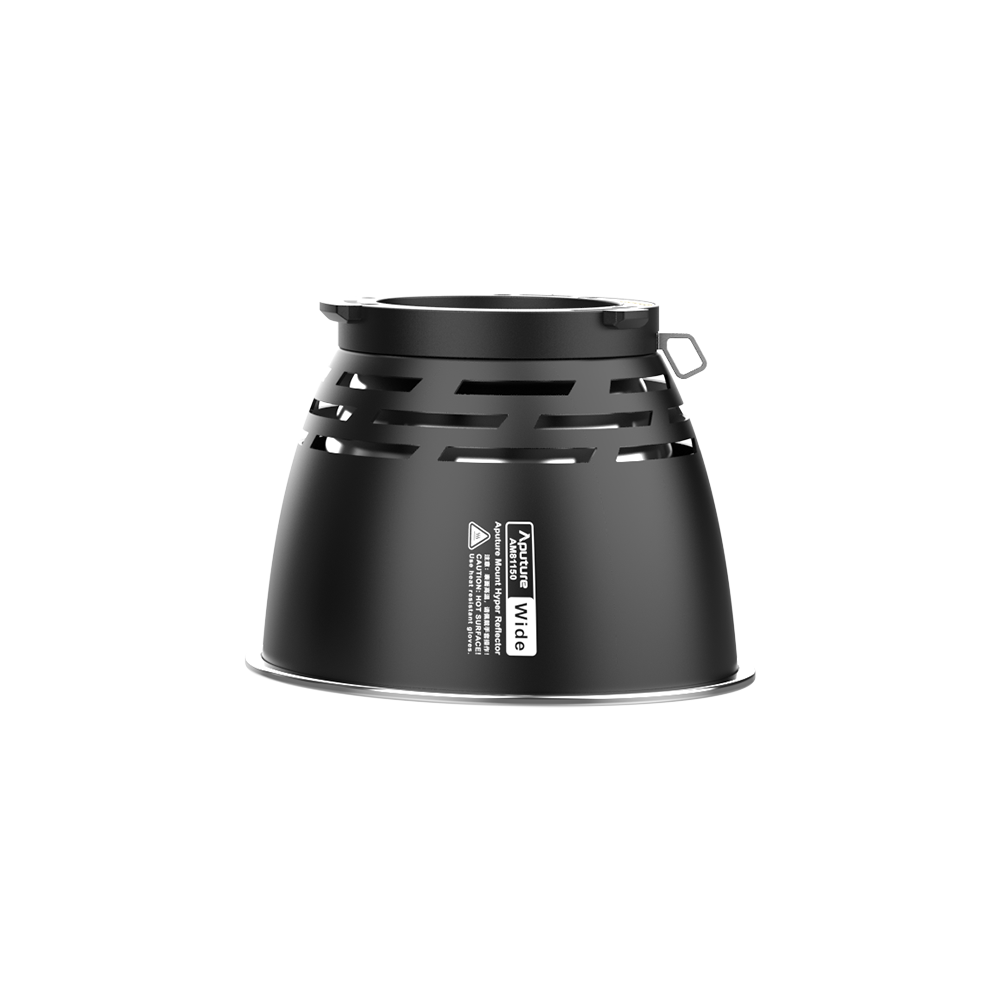

The XT52's innovative electronic Aputure mount is designed for heavy-duty modifiers, including the optional CF14 or upcoming CF16 Motorized Fresnel, guaranteeing stability, durability, and optimized color accuracy while supporting motorized focus control. Take full advantage of this mount's versatility by swapping out the included 35° reflector with one of Aputure's optional 20 and 50° reflectors.

Available Power Options

Depending on your location, the XT52 can be powered from household circuits, but please note that it requires 180V or greater to operate at full power. This XT52 fixture comes with a bare ends cable, letting users customize their plug solutions. It includes a 24.6' head cable and offers head-cable daisy chaining at lengths up to 147.6'.

Professional Connectivity

Designed with professionals in mind, the XT52 offers advanced connectivity options, including Sidus Link app control, LumenRadio CRMX, Art-Net and sACN via etherCON, and 16-bit DMX512 input and output. These features seamlessly integrate the fixture into existing lighting workflows, providing lighting technicians and programmers with complete control over its operation.

Advanced Liquid Cooling Technology

To effectively manage heat dissipation and maximize light output, the XT52 incorporates advanced liquid cooling technology. This innovative design guarantees that users can access the full potential of the fixture's light output while maintaining optimal performance.

Flexible Flicker-Free Performance

The flexible XT52 fixture supports both CIE daylight or Blackbody white light standards and uses a HyperDrive LED driver to ensure flicker-free performance at all color temperatures above 20% output.

Additional Features

The XT52's design features a stackable lamp head and a removable manual yoke, streamlining your storage options. Also featured is a modular, service-friendly sub-assembly with circuit board-level monitoring and fault error codes.

Flight Case

This fixture comes with two robust, wheeled flight cases for lamp head and control box storage and transportation.
