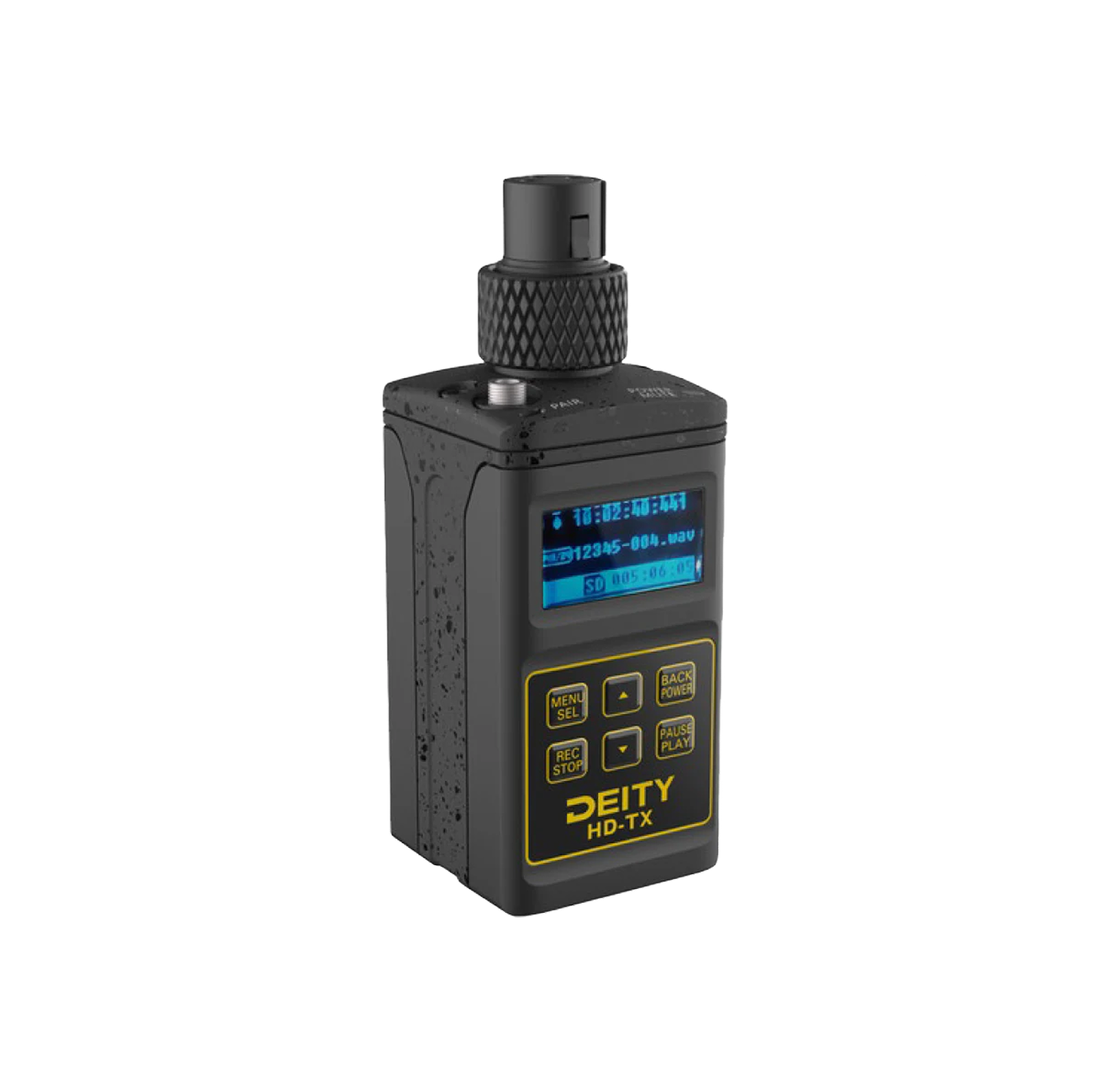

Deity HD-TX

The HD-TX is an XLR transmitter that is truly unique and different. Its compact form factor makes it lightweight enough for boompoles and when combined with a shotgun mic, its built-in recorder and headphone jack make it so you don’t need any other sound gear to capture great audio.

• Guard Rail Analog Limiter
• 1.3″ OLED display
• +48V Phantom Power
• ~10hrs of battery life at 100mW
• Multiple RF Outputs (10mW, 25mW, 50mW, 100mW, AUTO)
• 75Hz and 150Hz Low cut filters
• Record 24bit/48kHz WAV files to microSD card

What do you get in the box?

• 1x HD-TX

specifications

• Wireless Transmission Digital 2.4 GHz
• Encryption Yes
• Sample Rate 48kHz / 24-Bit
• Form Factor Plug-On
• RF Output Power 10 / 25 / 50 / 100 mW (switchable)
• Audio I/O 1 x XLR 3-Pin Female Balanced Input (Lockable) 1 x 1/8″ / 3.5 mm TRS Female Mic/Line Input (Lockable) 1 x 1/8″ / 3.5 mm TRS Female Headphone Output
• Phantom Power +48 V – XLR Input
• Plug-In Power 3 V – 3.5mm Input
• Pad Up to -12dB
• Muting Mute Switch
• Gain Range -12 to +36 dB
• Signal Processing High-Pass Filter: Off, 20 – 200 Hz High Frequency Boost: Off, +1 – +10dB @ 7 Khz
• Frequency Response 20Hz to 20kHz
• Antenna 1 x 1/4 Wave Internal, Fixed
• Power Requirements Battery or Bus Power (USB)
• Battery Type 1 x Built-In Rechargeable (included)
• Internal Battery Capacity 2600mAh
• Battery Charging Time 90 Minutes
• Approx. Battery Life ~12 Hours @ 100 mW RF Output +14 Hours @ 10 mW RF Output
• USB Connectivity 1 x USB Type-C (Data Transfer, Charging, USB Sound Card)
• Display & Indicators 1 x LED (Mute, Power) 1 x LED (Pair) 1 x OLED
• Operating Temperature 14 to 113°F / -10 to 45°C
• Dimensions 1.7 x 4.4 x 1.7″ / 42.5 x 112.3 x 42.5 mm
• Weight 7.8 oz / 220 g
