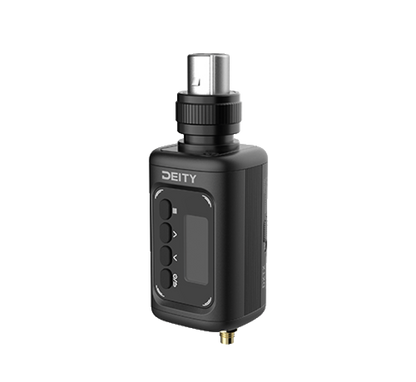

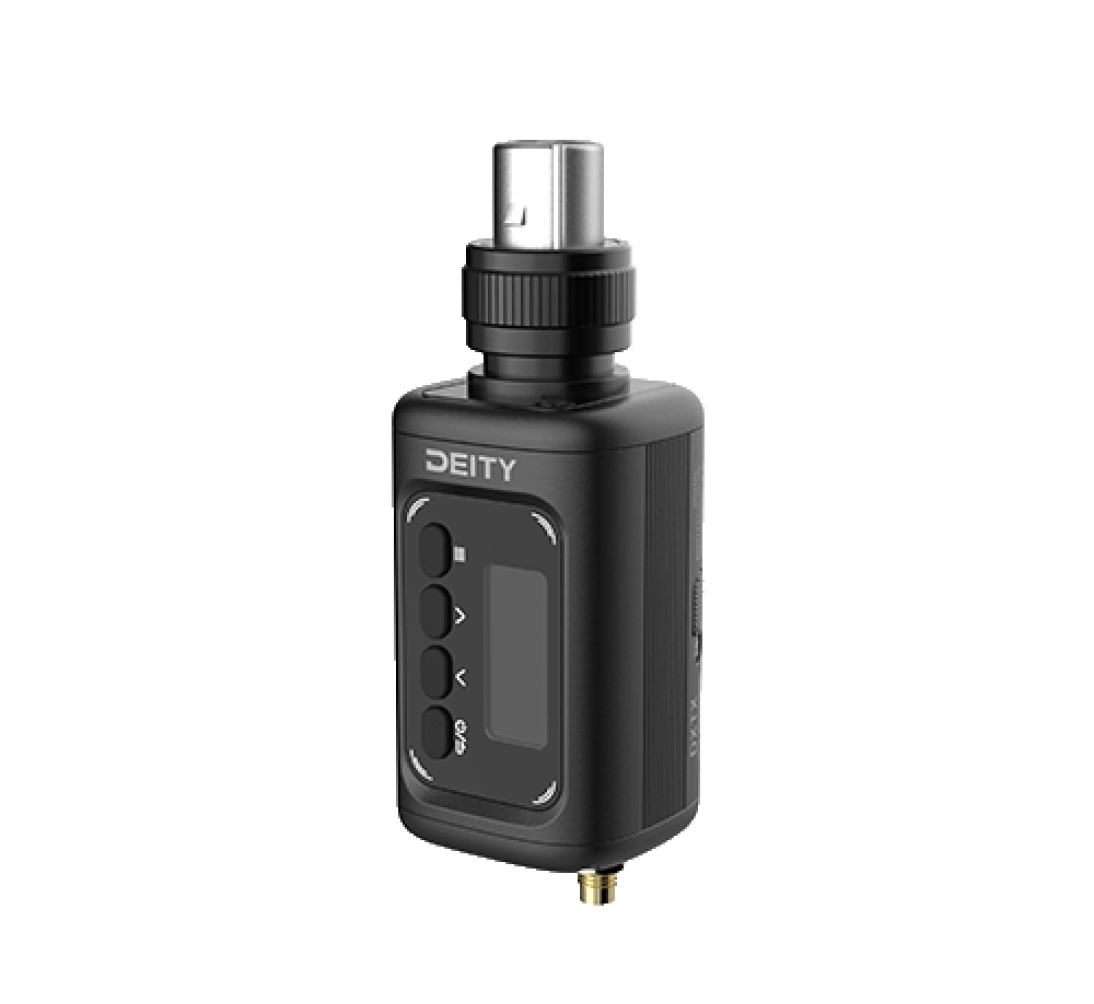

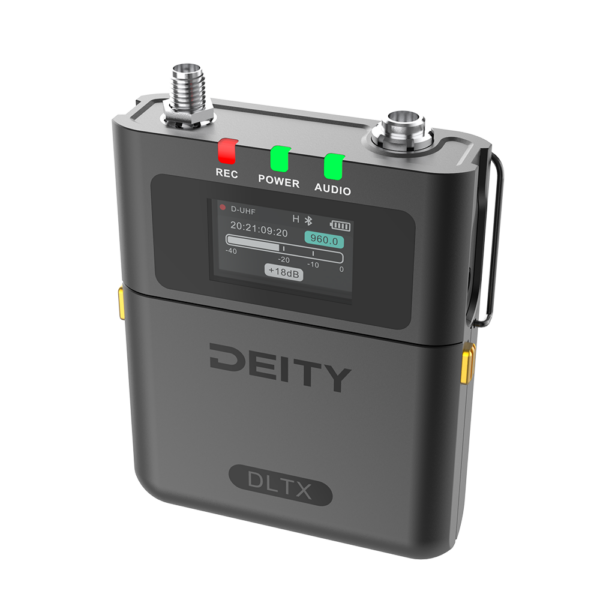

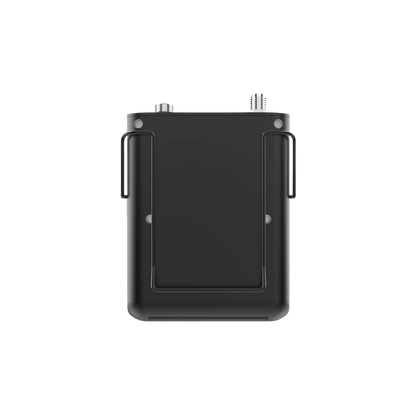

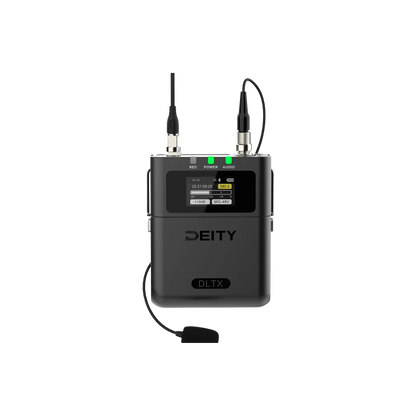

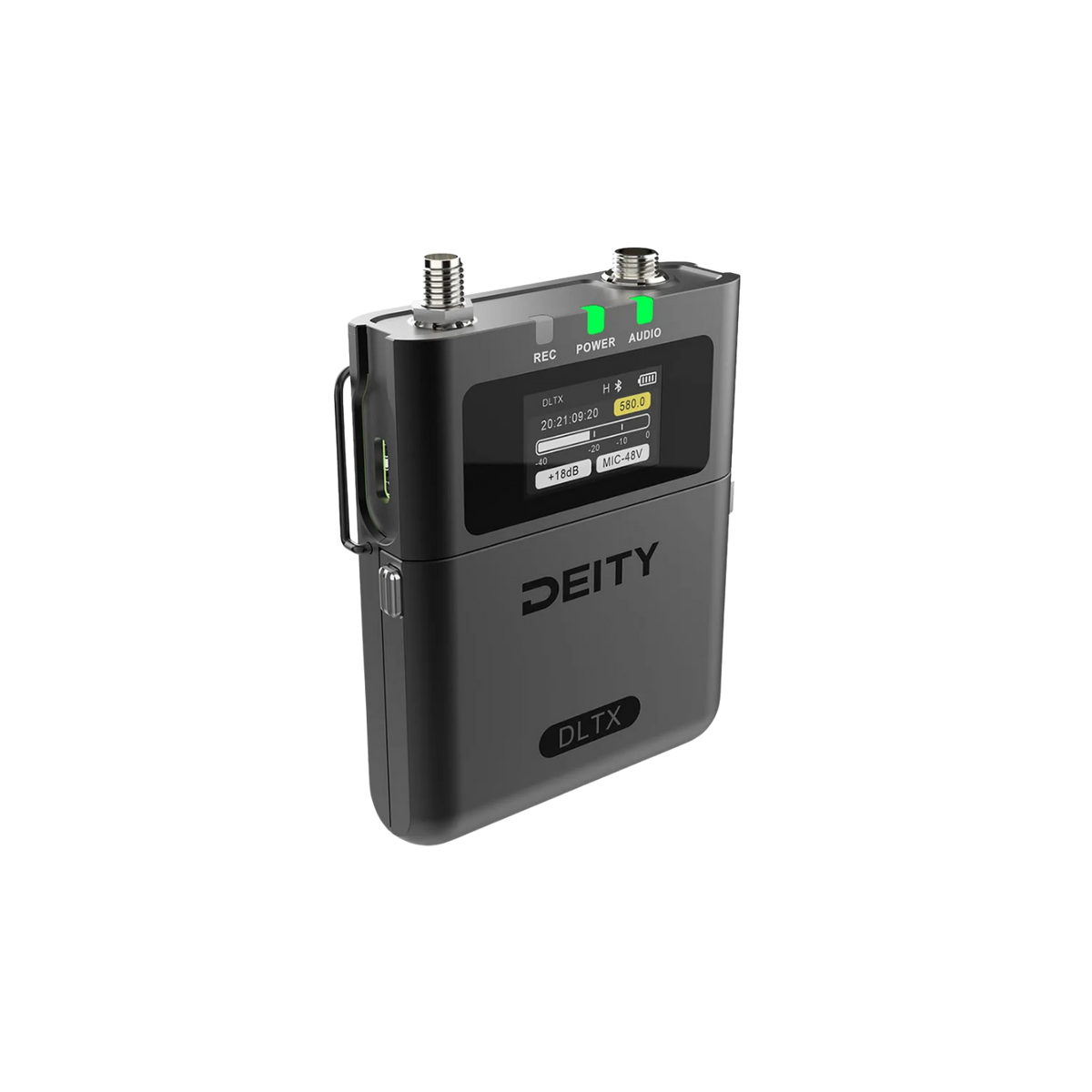

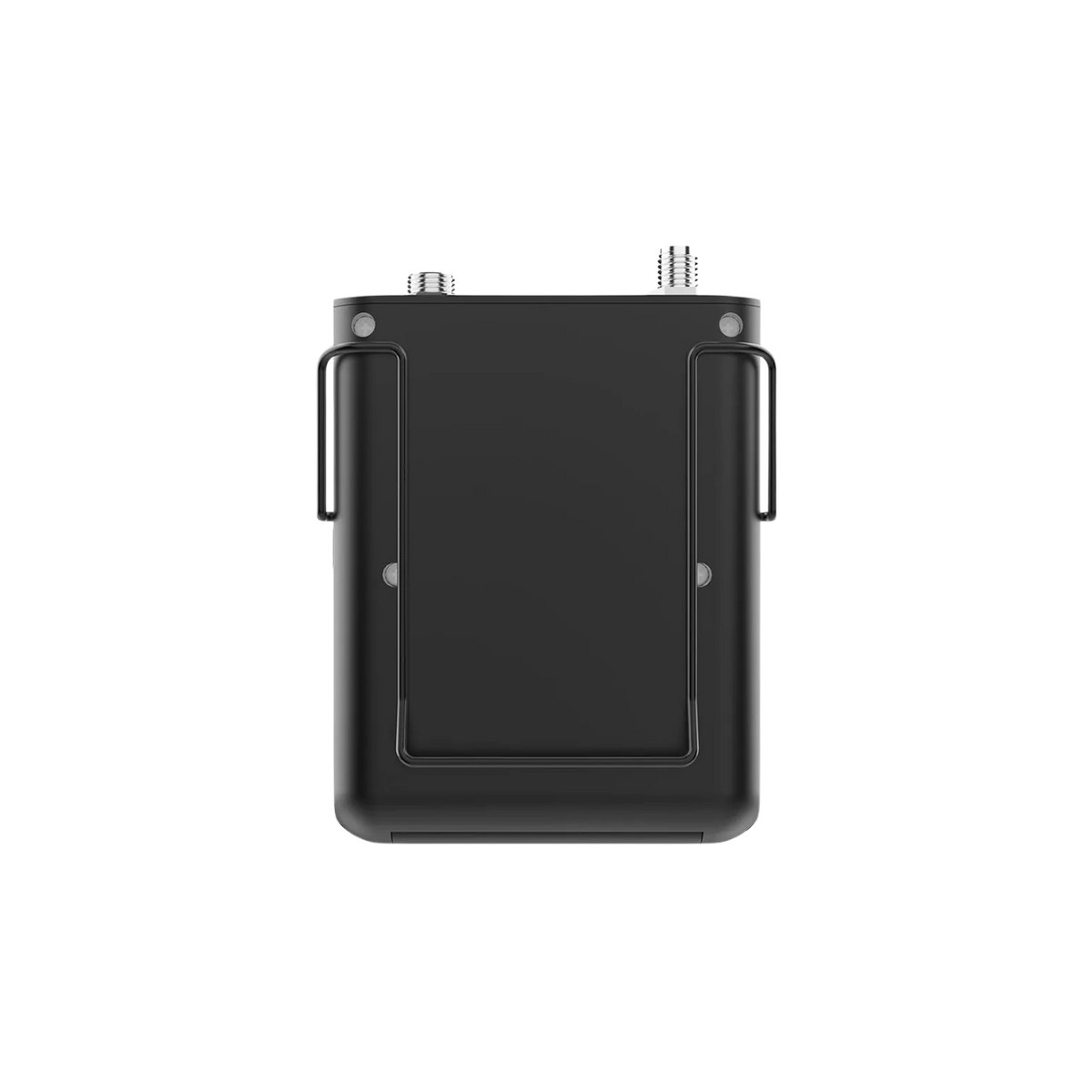

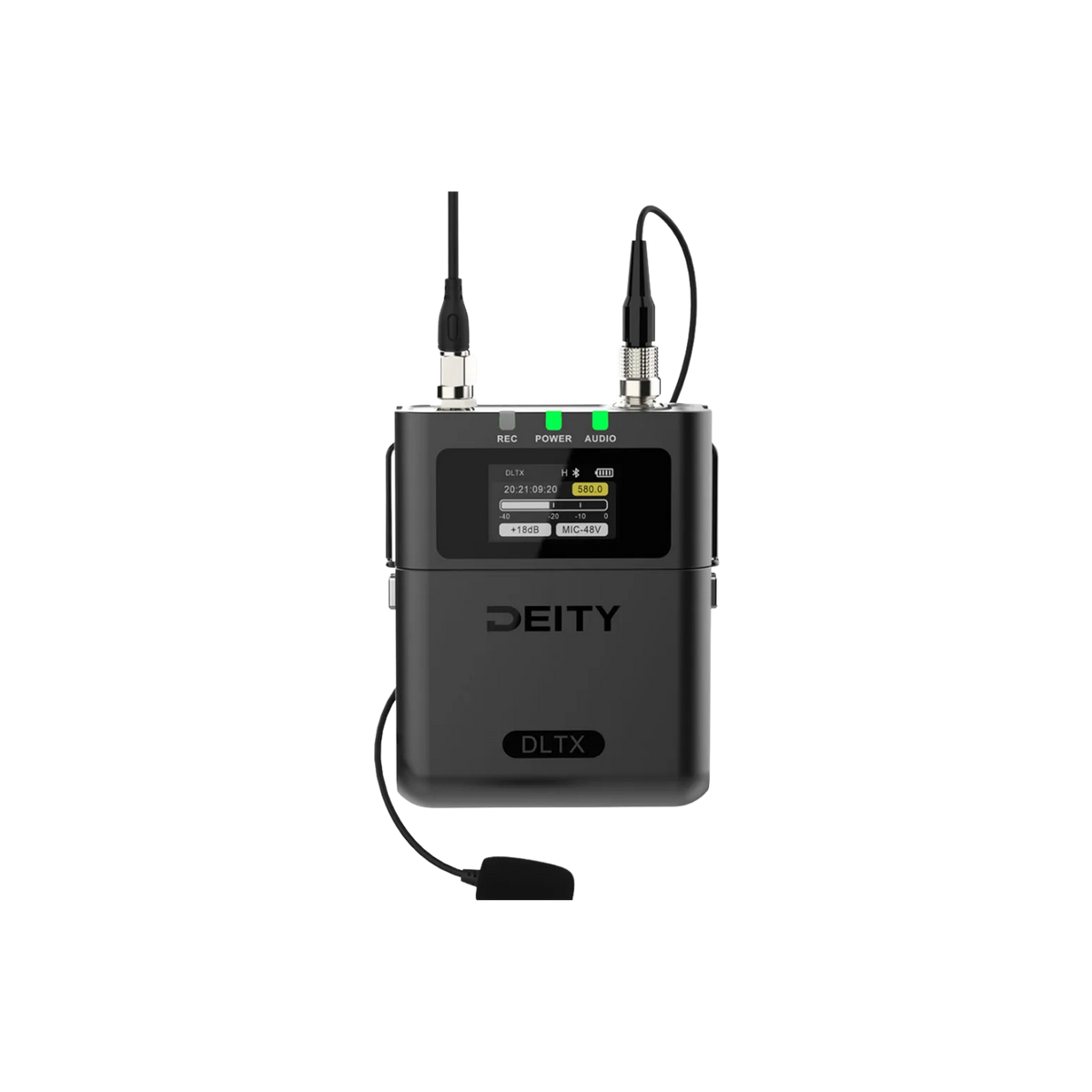

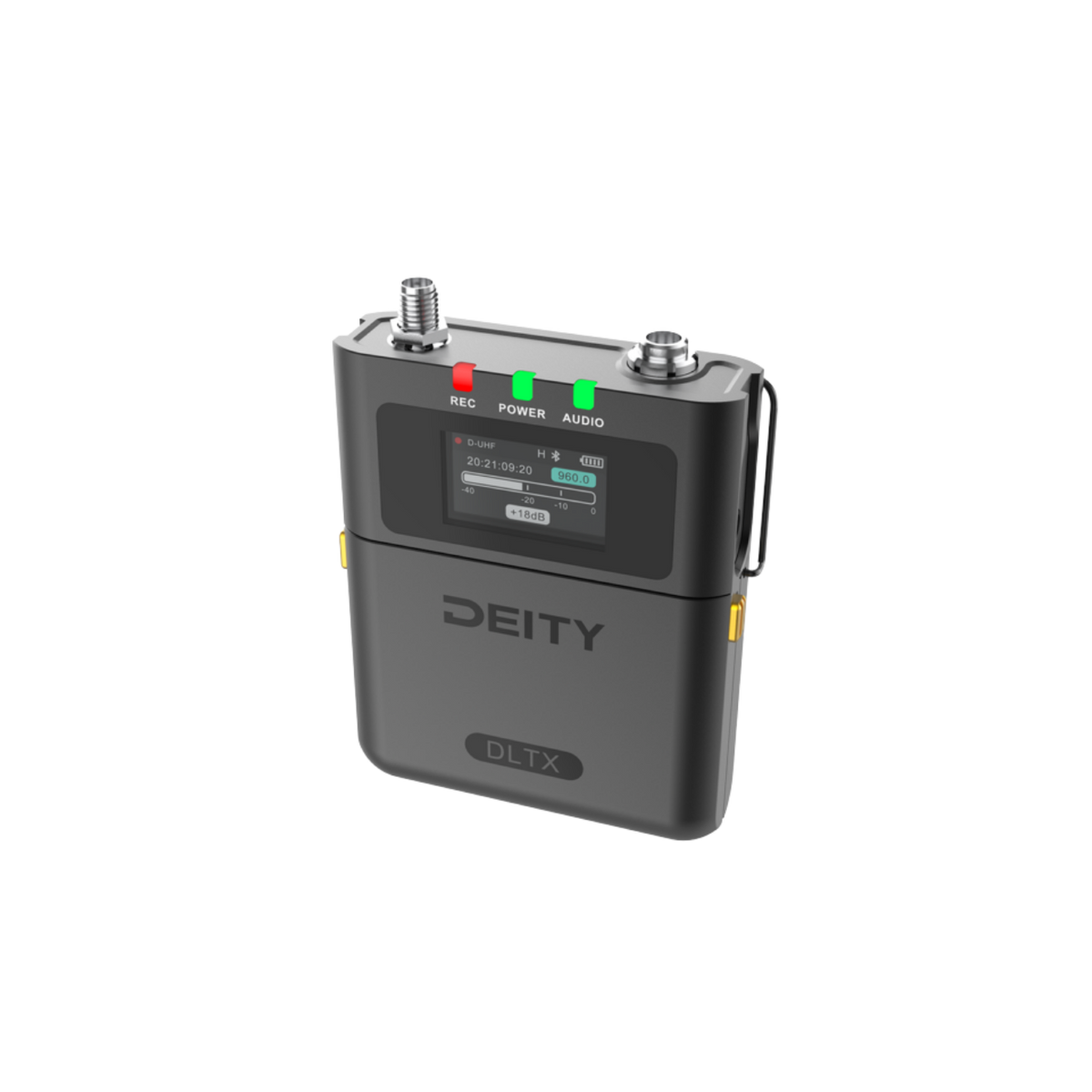

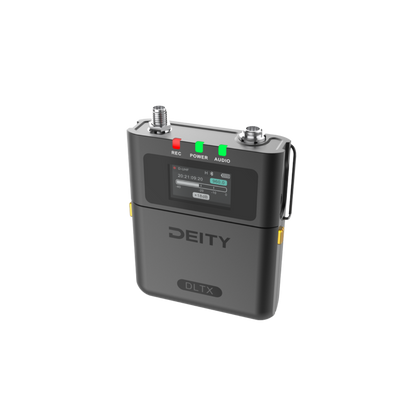

THEOS DLTX（Global)48v phantom power Transmitter

specifications

• RF Modulation
  Proprietary Digital RF Modulat...
  Read more

  specifications

  • RF Modulation
    Proprietary Digital RF Modulation
  • RF Freq Ranges
    According to different regions, the legitimate frequency bands in line with local conditions are allocated
  • RF Frequency Step
    100kHz
  • RF Bandwidth
    200kHz
  • Minimum Frequency Interval
    700kHz
  • Antenna Connector
    50Ω SMA
  • Power Output
    10/25/50/100mW-Software Select (varies by regulation)
  • Dynamic Range
    105dB
  • Distortion
    <0.5%
  • Frequency Response
    20~20kHz
  • Low Cut
    0FF/75Hz/100Hz/150Hz
  • Mic Power
    MIC-5V,MIC-48V,LINE
  • Mic Connector
    XLR 3Pin / XLR 5Pin
  • Input Gain
    0~+42dBu
  • ADC Bit-Depth
    2x 24 bit
  • ADC Sampling-Rate
    48KHz
  • Timecode Reader/Generator
  • Clock Accuracy
    0.15 PPM (1 Frame in 72 Hours）
  • Timecode Type
    LTC(SMPTE)
  • Timecode Frame-Rates
    23.98, 24, 25, 29.97, 29.97DF, 30
  • Internal Recording
  • Media
    MicroSD Card (Flash Memory)
  • File Format
    .WAV
  • Sample Rate
    48kHz
  • Record Format
    24 / 32bit float
  • Power

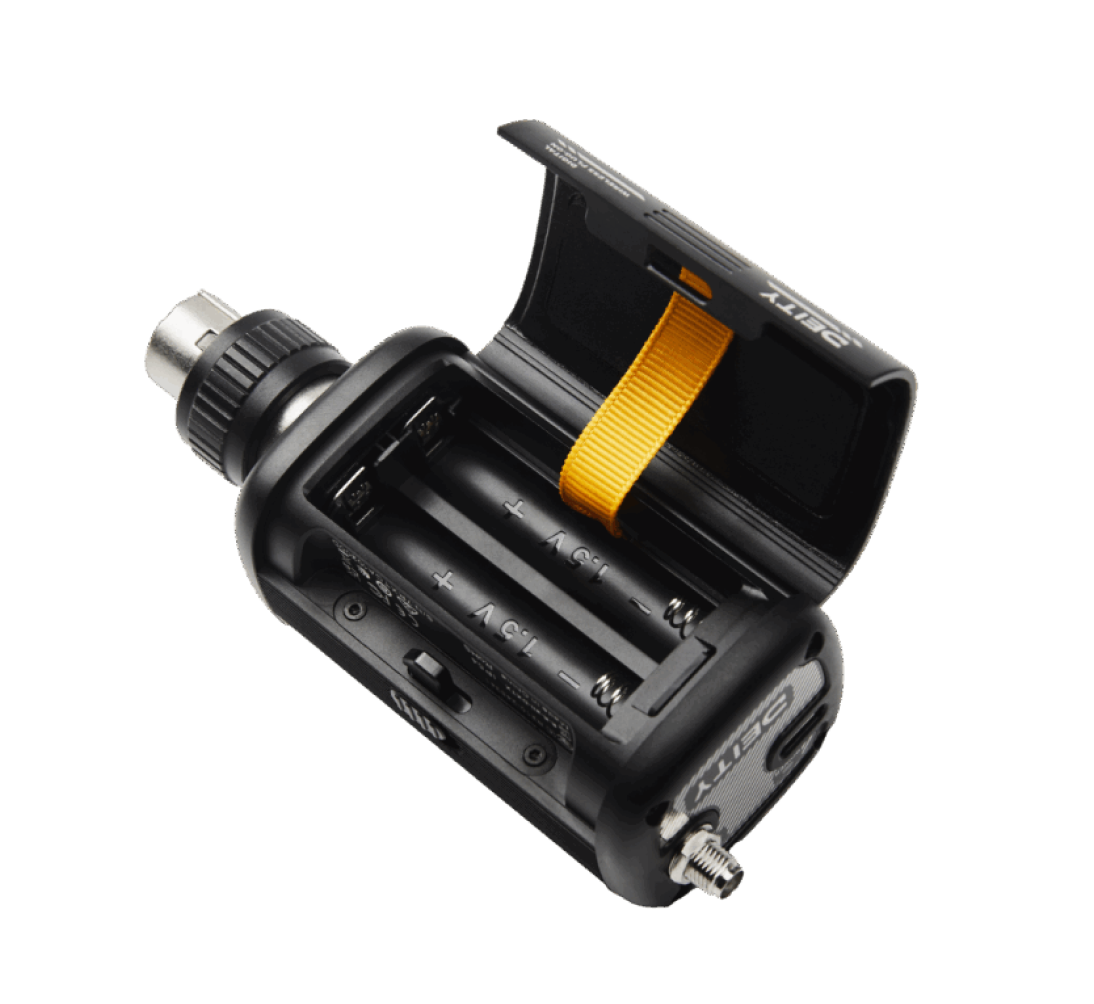

  • Battery Type
    AA×2
  • Battery Life (48V DEITY AA)
    8h+
  • Physical
  • Dimensions（HxWxD）
    119x44.8x42mm
  • Weight
    Without battery and antenna: 190g Without battery and with antenna: 196g With battery and antenna: 228g
  • Operating Temperature
    -20℃~45℃(-4°F~113°F)
